DRB-206A Network Audio Processor

Easy installation

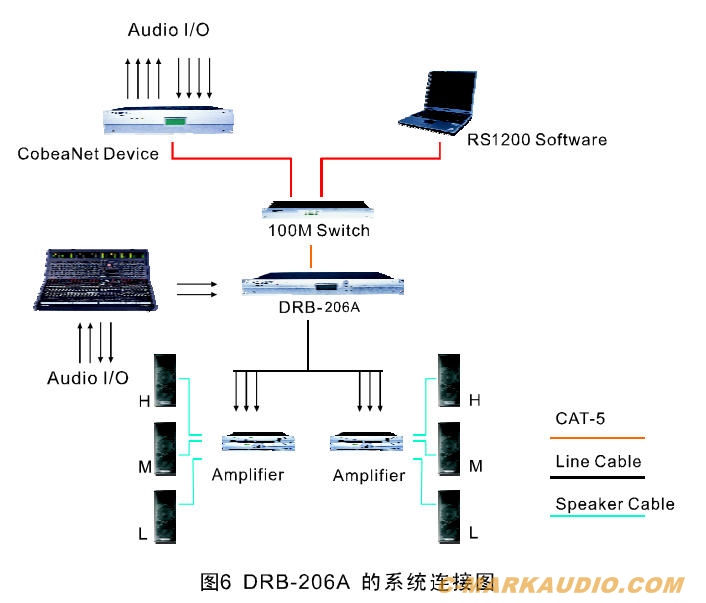

You can easily process the audio signals by connecting the DRB to the Cobranet audio system.

Easy operation

The DRB network DSP can be controlled by simple graphic operation software, 8 work modes can be pre-set for easy operation.

Flexible configuration

All DRB process parameters can be stored in flash memory

Redundant network connection

Different models can be optional, maximum has 2 analog audio input ports, 6 analog audio output ports and 2 CobraNet ports.

Powerful audio DSP functions, contains multiple virtual audio devices in RS1200 software. Lots of professional audio equipments can be replaced by these virtual audio devices in RS1200 software.

  • Product Details
  • Appearance Size Chart
9餅視頻起到愛看不看影視站,經過快科技影吧來到飄影流年影視站,它們將是你的影視不二之選,必久影視十年影視帶你重溫必看經典,九點酷娛更能給你一站式的娛樂體驗和享受。

DRB Series DSP Functions

?  Delays: 5ms,10 ms,20 ms,50 ms,100 ms

?  Routers:4 × 4,8 × 8,16 × 16

?  Mixers:4 × 1, 4 × 2,4 × 4,8 × 1, 8 × 2, 8 × 4,8 × 8

?  Dynamics: Leveler, Compressors, Limiters, Noise Gates, Expanders, Clipper

?  Signal Generator: Sine, White noise

?  Equalizes: Parametric Equalizes, Graphics Equalizes

?  Filters: High-pass, Low-pass, Highpass Shelving, Lowpass shelving

?  Crossovers: 2 way,3 way ,4 way

?  Level Meters:1 way, 2 way, 4 way, 8 way


SPECIFICATIONS

?  Frequency Response:20 Hz–20 KHz, ±0.2 dB

?  THD plus Noise:<0.005% @ +4 dBu

?  Dynamic Range: 103 dBA, 101 dB unweighted

?  Maximum Input Level: +21 dBu, balanced

?  Maximum Output Level: +21 dBu, balanced

?  Input Gain Adjustment : 0~66 dBu

?  Input Impedance: 20 kΩ

?  Output Impedance: 100 Ω, designed to drive a minimum load of 600 Ω

?  Sampling rate:48KHz

?  Digializing bit: 20 bit

?  Processing 8 audio channels

?  DSP Capability: 200 MIPS; 40-bit floating-point;

?  2 M bits on-chip, dual-ported SRAM; 4 M bits mask-programmable ROM

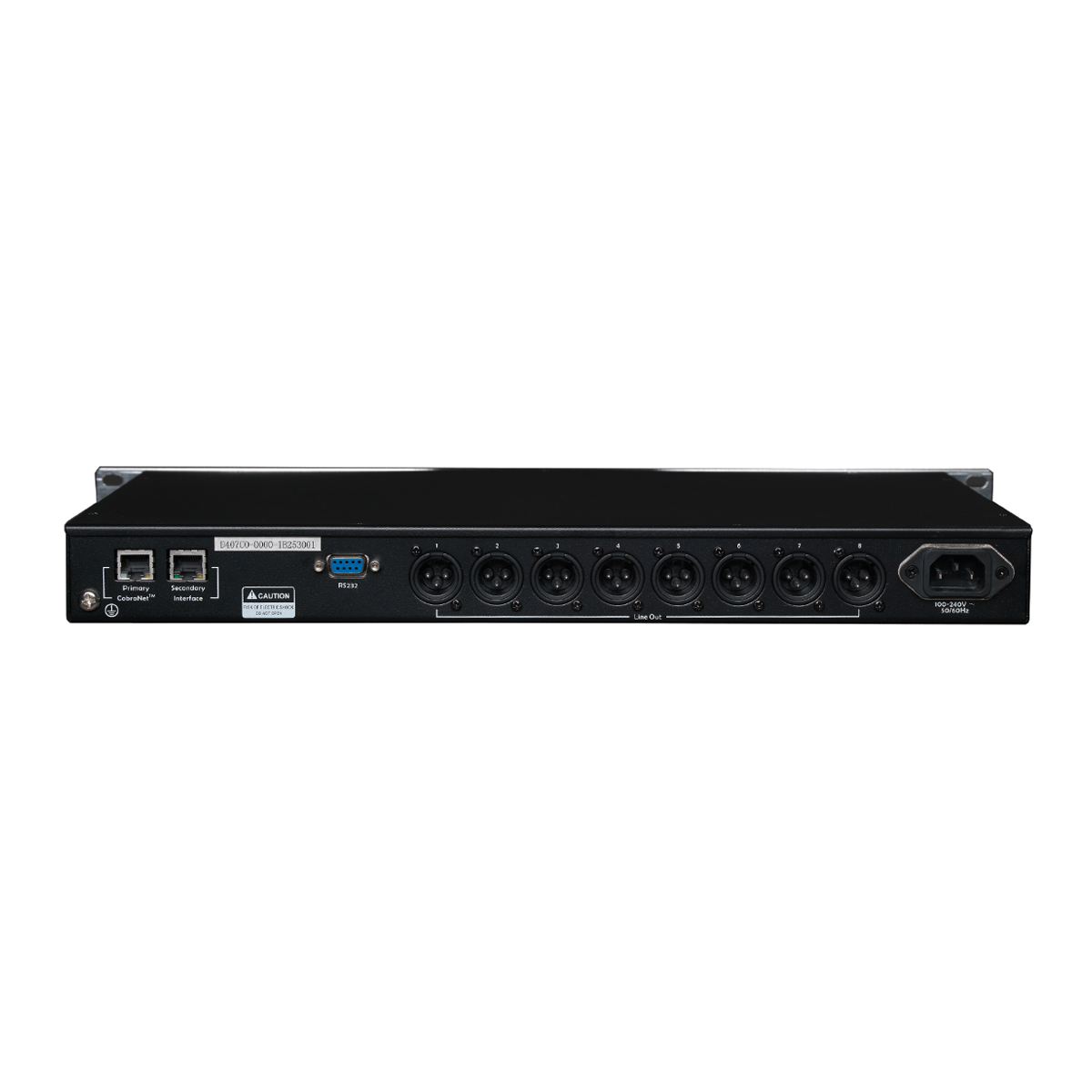

?  Digital Interfaces:2 RJ45 CobraNet network ports; 1 RS-232 port; 1 GPIO port

?  Analog Interfaces:

?  DRB-8A: 8 channels output ( balanced )

?  DRB-206A: 2 channels input ( balanced ) , 6 channels output ( balanced )

?  Power Supply: 100–240 V AC, 50/60Hz

?  Power Consumption: less than 30 W

?  Dimensions (L×W×H) : 430 x 291 x 44.5 mm without rack mounts

?  Operating Environment Temperature Range: 5-40° C

?  Operating Environment Humidity Range: 5-85%


Difference Between DRB Network Audio Processors:

Model

Description

DRB-1

No input and output audio ports, has 2 CobraNet ports. It can process 8 audio channels from the CobraNet signal.

DRB-8A

Has 8 analog audio output ports and 2 CobraNet ports. No input ports. It can process 8 audio channels from the CobraNet signal and output the processed signals to its audio ports

DRB-206A

Has 2 analog audio input ports, 6 analog audio output ports, and 2 CobraNet ports. It can process 2 audio channels from the local audio input and 6 audio channels from the CobraNet signal, then output the processed signals to its analog output ports.
